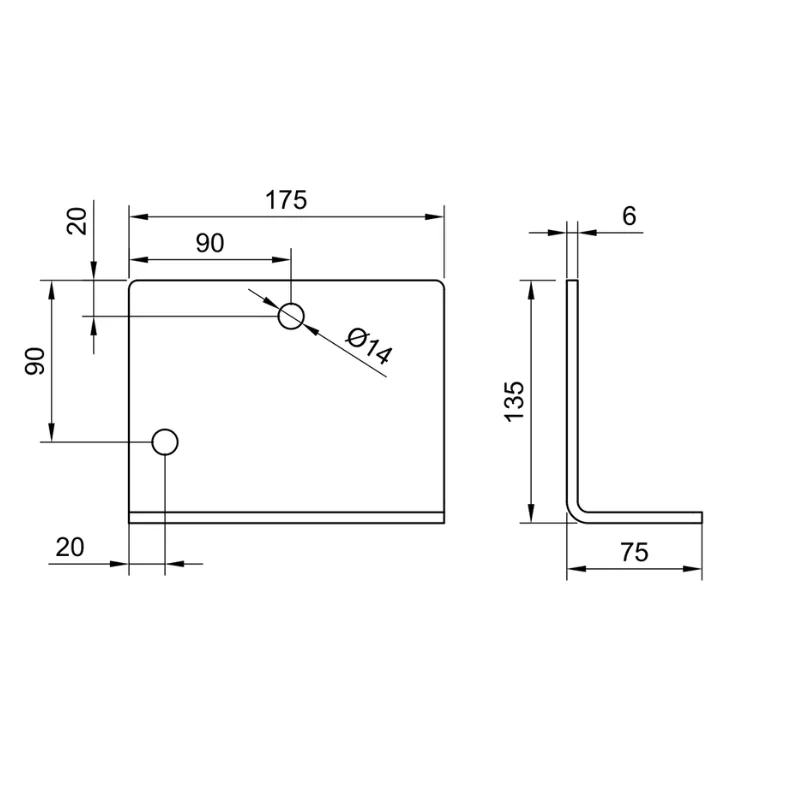

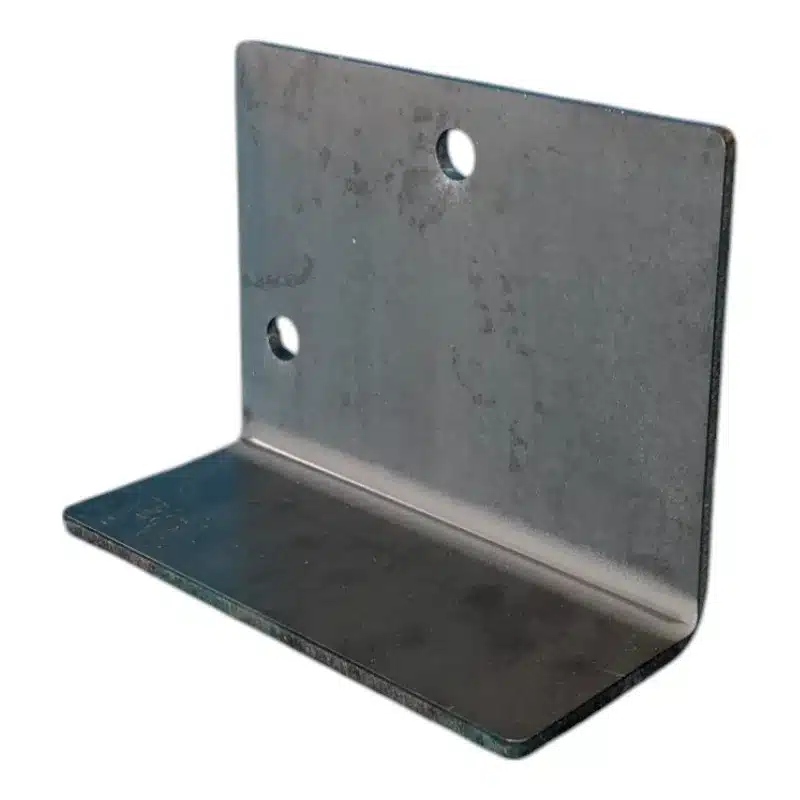

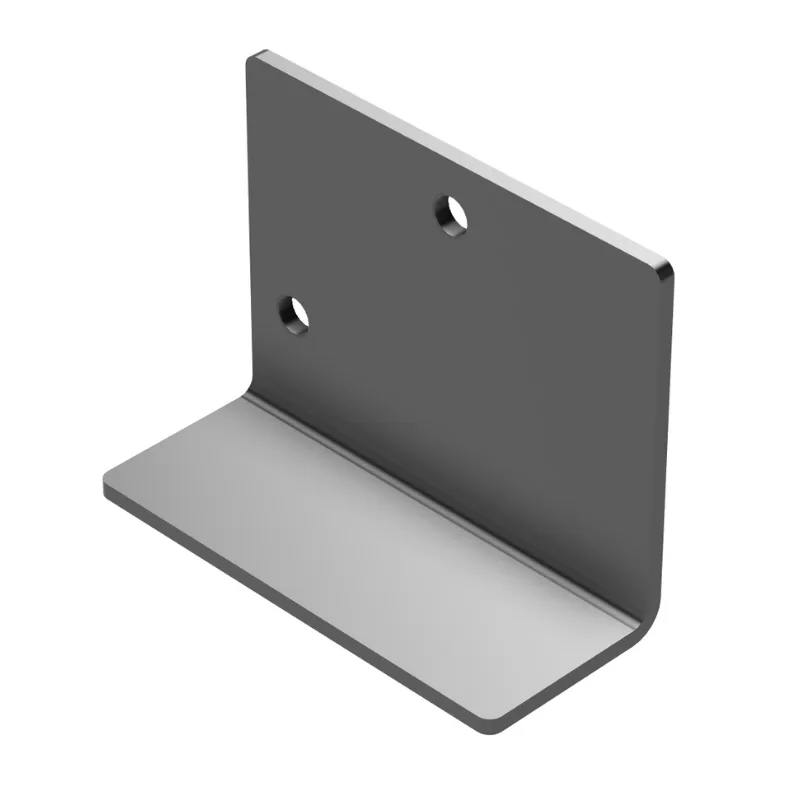

Right-hand single eaves beam bracket — a heavier-duty alternative to the angle cleat for connecting the eaves beam to the column. Used where higher loads or longer spans require a stronger connection.
What Is an Eaves Beam?
An eaves beam is a horizontal steel member that runs along the eaves of a portal frame building — the line where the roof meets the top of the wall. It connects across the columns at eaves level, running the full length of the building. The eaves beam ties the columns together, provides lateral restraint, and supports the guttering and the top edge of the wall cladding.
On most agricultural and industrial portal frames, the eaves beam is a timber beam or steel section that bolts to brackets or angles welded to each column. The brackets and angles you see on this page are the connection components — the parts that get welded to the column in the workshop so the eaves beam can be bolted on during site erection.
Angles vs Brackets — What’s the Difference?
Angles are L-shaped connectors cut from steel tube section. They’re a simpler option and are sufficient for most standard eaves beam connections.
Brackets are formed from flat steel plate that has been bent into shape. This gives them a wider bearing surface and a stronger connection. They’re used where higher loads apply, for example, on buildings with longer bay spacings or heavier cladding.
Your engineer’s detail drawings will specify which type is required at each frame position.
Single vs Double — Which Do I Need?
Single (LH or RH) angles or brackets support the eaves beam from one side of the column, usually on the gable ends. Left-hand and right-hand versions are mirrors of each other — check your erection drawing for which hand goes where.
Double angles or brackets support from both sides of the column. They’re used at positions where two eaves beams butt together at a column (rather than lapping), or at the ends of the building where the beam terminates.
How Many Per Building?
Every column along each side wall needs an eaves beam connection. A typical 6-bay shed has 7 frames, so that’s 7 connections per side × 2 sides = 14 eaves beam brackets or angles. The mix of single LH, single RH, and doubles depends on your beam layout, your erection drawing will show the arrangement.
Why Buy Eaves Beam Components From Us?
- Sold individually — order the exact mix of singles and doubles you need
- Laser-cut steel — accurate profiles, clean edges, ready to weld
- CE-marked — compliant with UK construction product regulations
- Next-day dispatch — order before 12pm for same-day dispatch
- Angles and brackets both available — choose the right connection type for your build
Not sure which eaves beam connection you need? Send us your column detail drawing on WhatsApp and we’ll confirm the right type and quantity.
