Steel Building CAD Design & Detailing – Portal Frames, Sheds & Agricultural Buildings

- shipping calculated at checkout

Professional CAD design service for agricultural sheds, portal frame buildings and steel structures. Delivered with Tekla Structures, CE-ready, fabricator-friendly drawings and DXF/STEP files. Perfect for farmers, fabricators, builders and shed installers.

Ask for more info, or order via Whatsapp

Overview

Get a full steel building CAD design package for your project — whether it’s a portal frame shed, agricultural unit, storage building or a custom structure.
We produce clean, fabricator-ready drawings using Tekla Structures, ensuring accuracy, CE compliance and fast turnaround.

This CAD service is suitable for:

  • New steel portal frame buildings

  • Agricultural sheds

  • Cattle sheds

  • Machinery/storage units

  • Lean-tos and extensions

  • Replacement frames

  • Custom structural designs

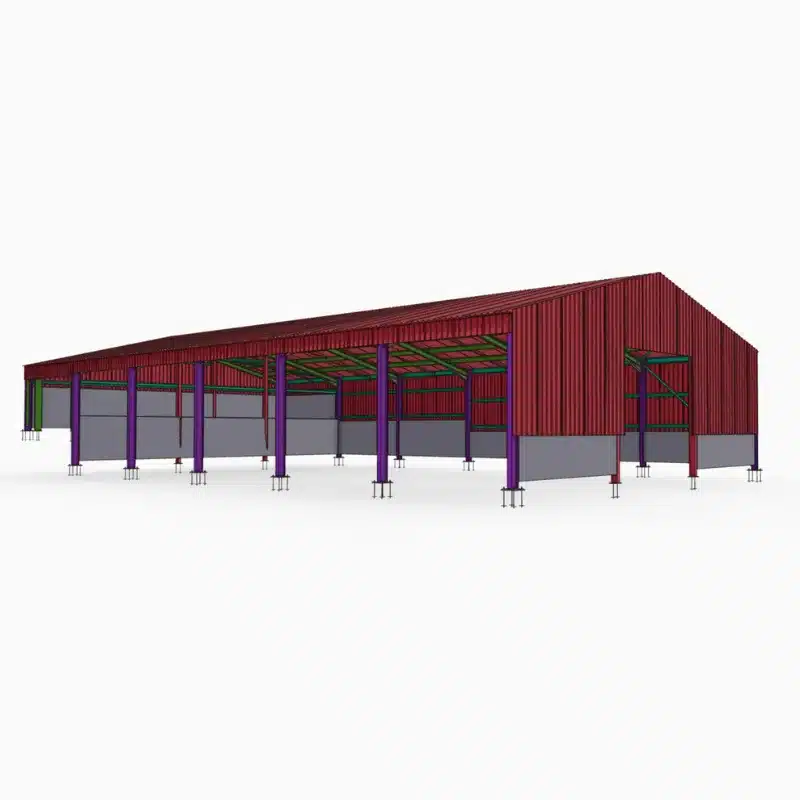

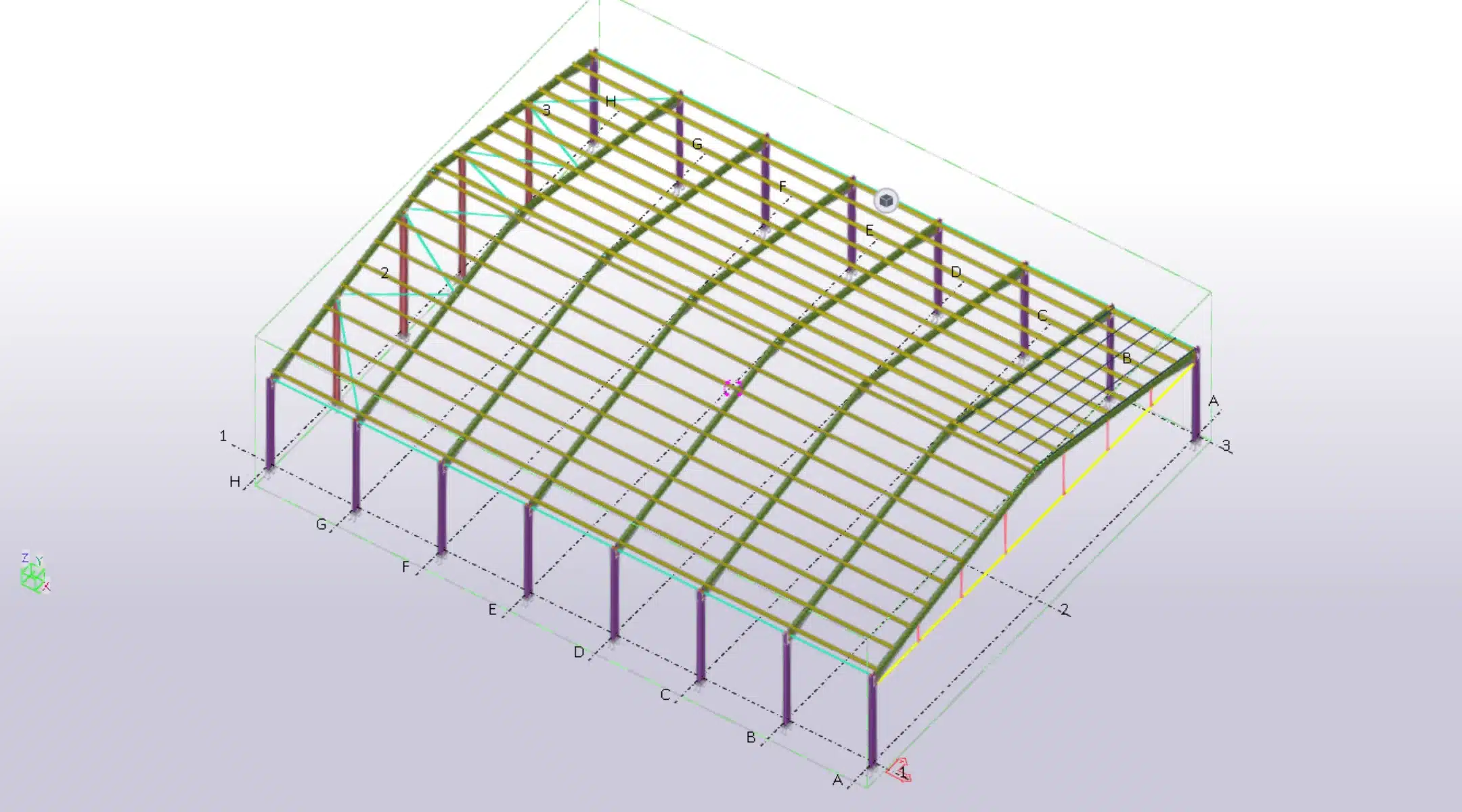

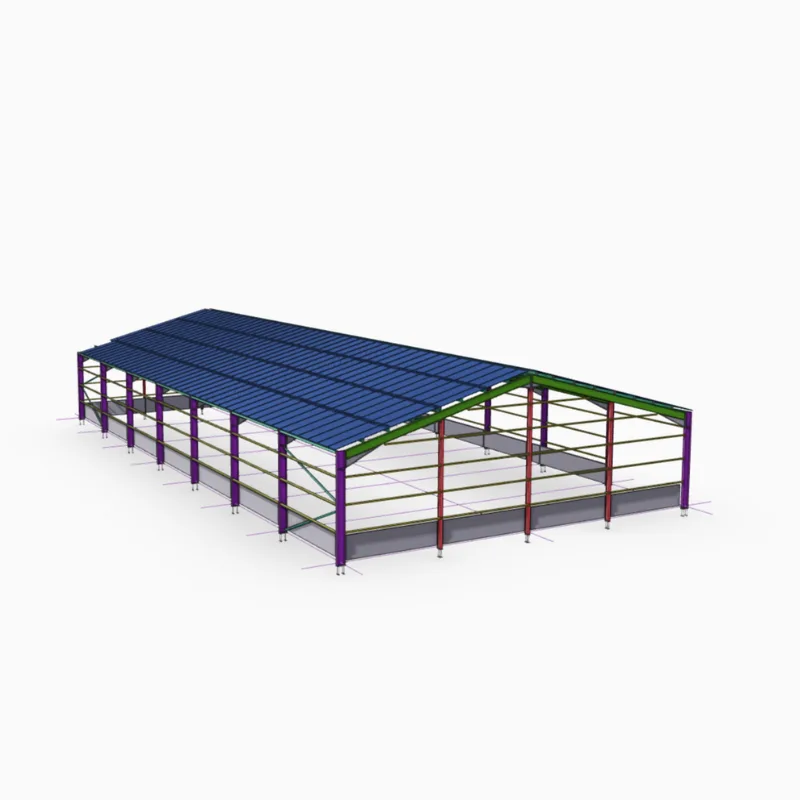

You’ll receive everything needed for fabrication or planning, including drawings, 3D models, connection details and optional material lists.


What’s Included

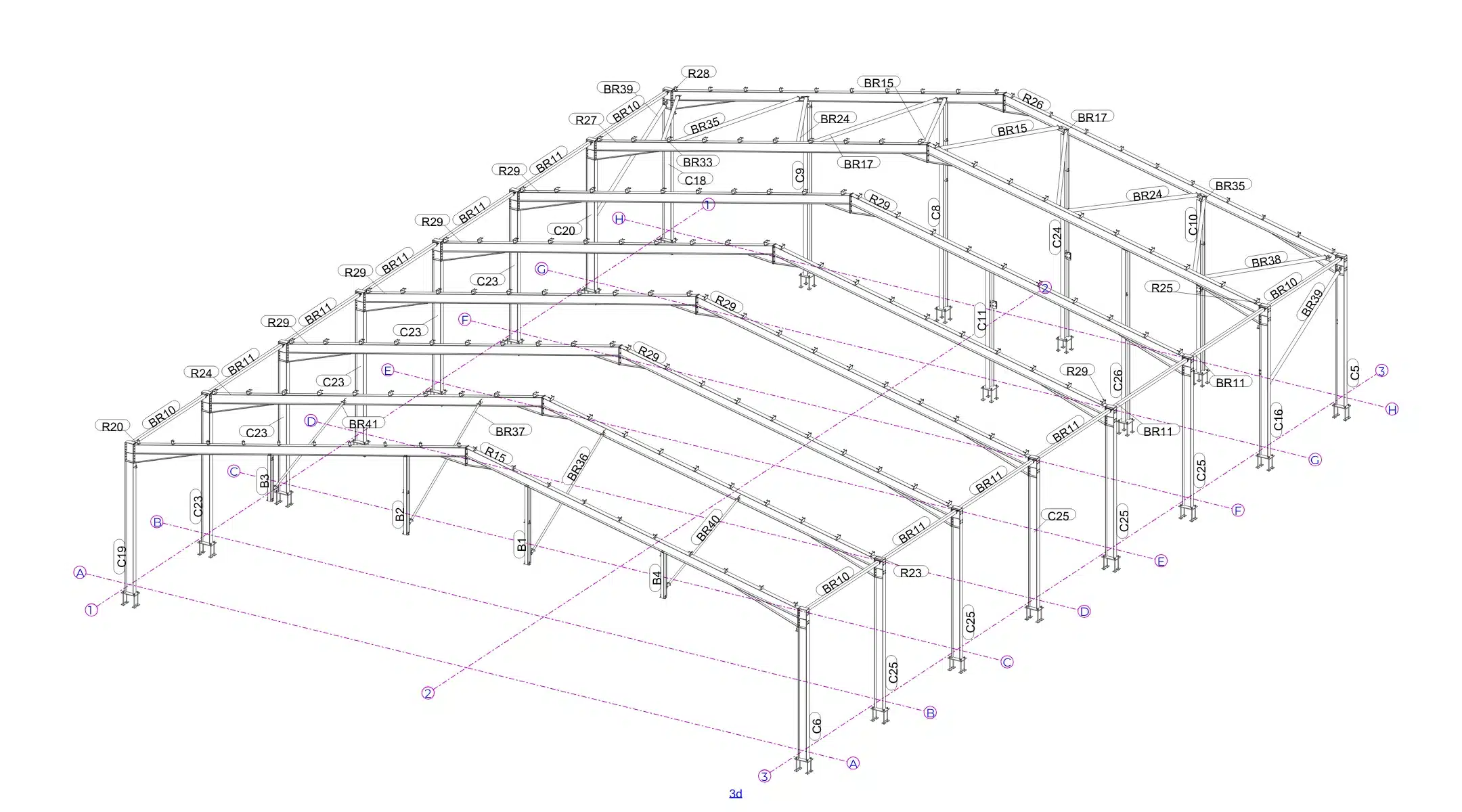

✔ General Arrangement Drawings (GA’s)
✔ Connection & Detail Drawings
✔ Fabrication Drawings (to CE Marking standards)
✔ Bill of Materials (optional)
✔ Component list compatible with SSC products
✔ One round of revisions included


How to Order

To get a quote for your design, please head over to our detailing page here and enter all the details into our form, we will then come back to you with a full price within a few days.
